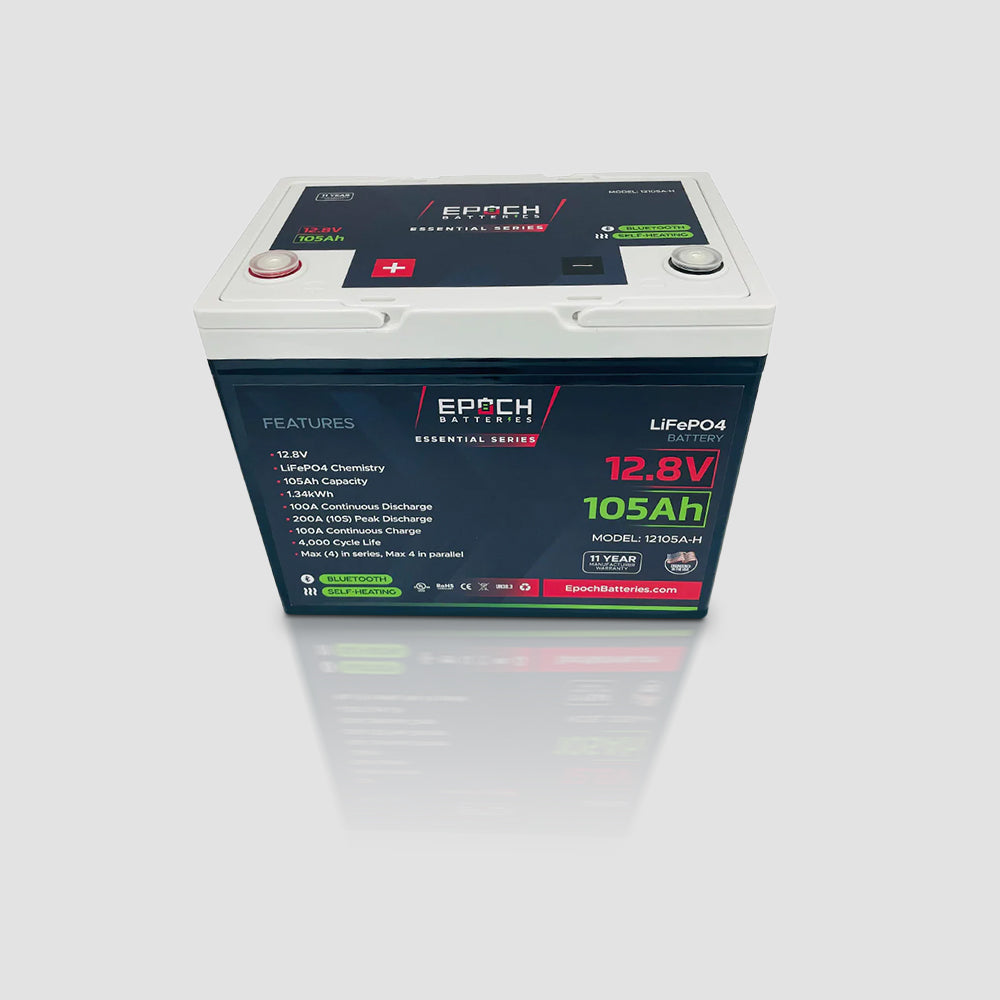

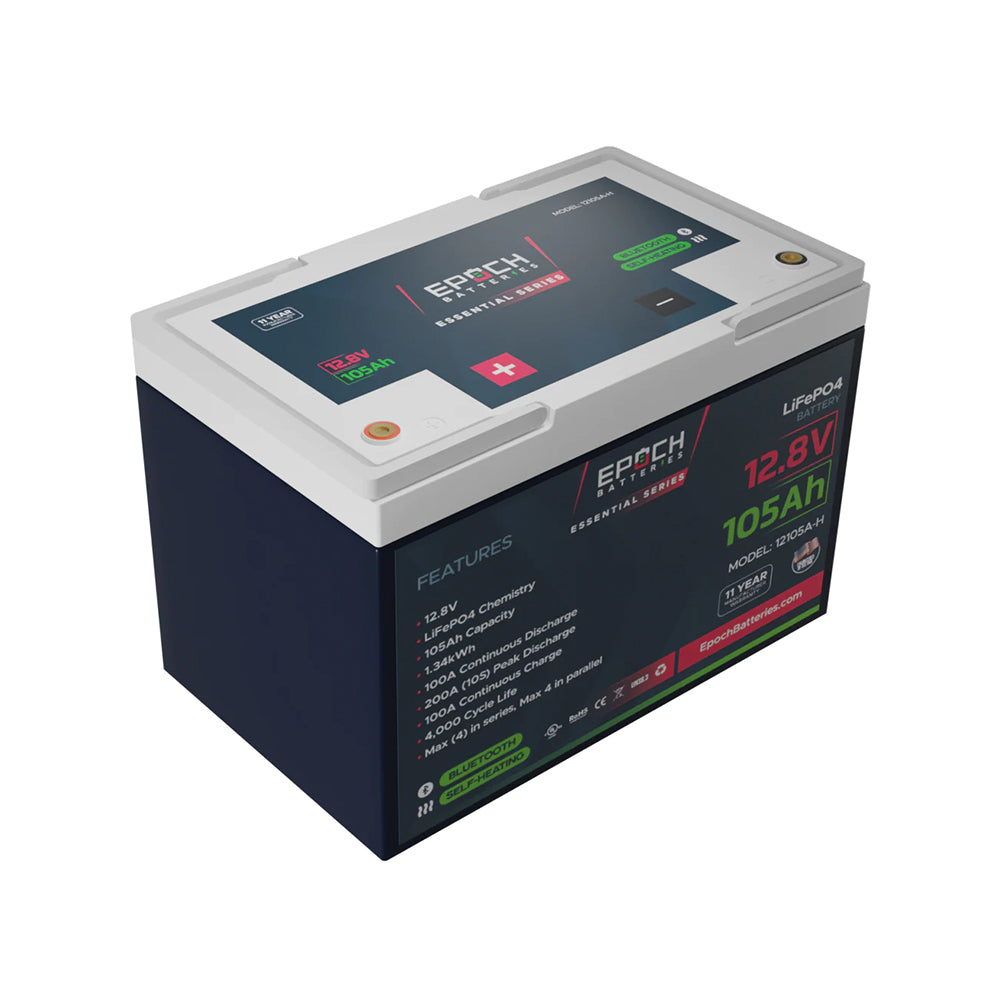

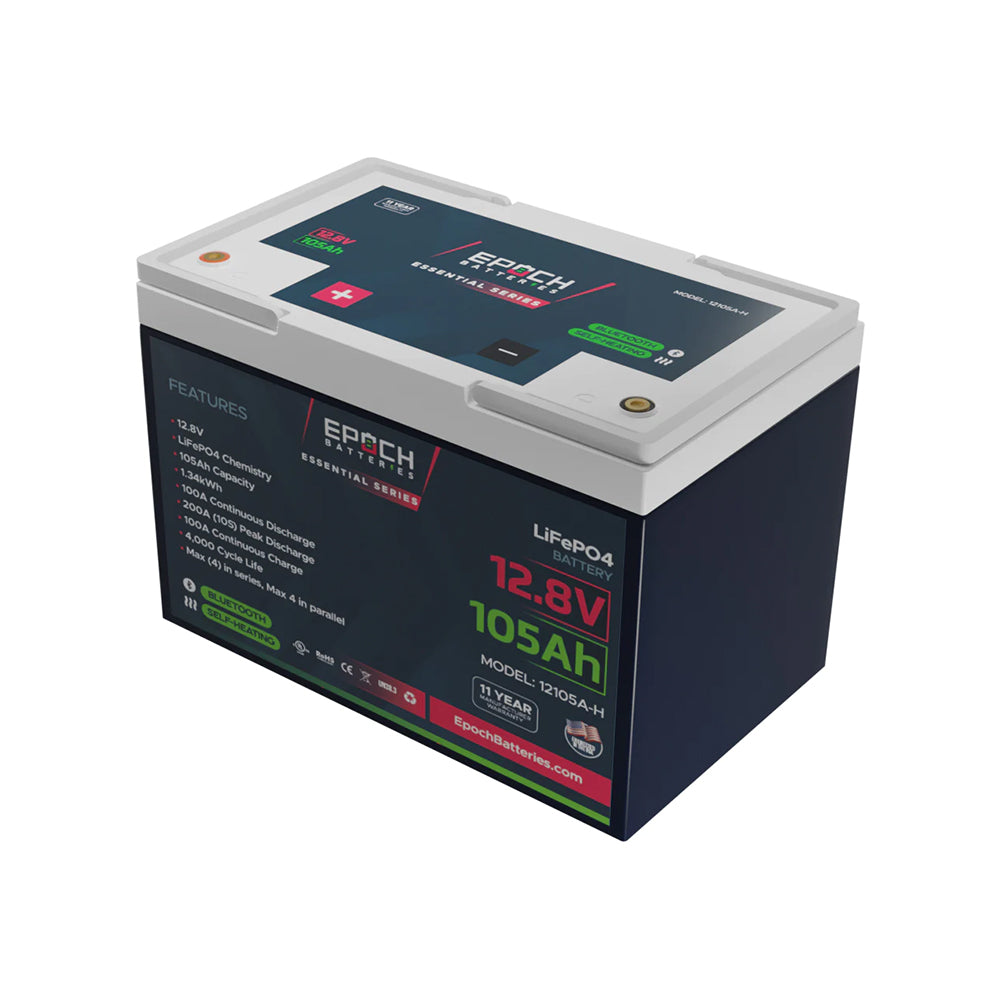

Epoch 12V 105Ah | Heated & Bluetooth LiFePO4 Battery

• LiFePO4 Chemistry - Deep Cycle Battery
• HEATED - Internal heating allows for charging in sub-zero conditions
• BLUETOOTH - iOS and Android Apps
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• Max (4) in Series up to 48V
• Max (4) in Parallel up to 420Ah
• 4,000+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Weight: 22.1 (LBS)

DIMENSIONS

Length: 10.2 (inches)

CONFIGURATION

Cell Configuration: 4S1P

Chemistry: LiFePO4

CURRENT

Ah Capacity: 105Ah

Max Continuous Discharge Amps: 105A

Max Charge Current Amps: 100A

Max Discharge Peak Current Amps: 200A (10 Seconds)

Series | Parallel: Max (4) in Series, Max (4) in Parallel - 4S4P

VOLTAGE

Voltage: 12.8V

Max Charge Voltage: 14.6V

Operating Voltage Range: 10.0 - 14.6V

TEMPERATURE

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

Width: 6.6 (inches)

Height: 8.3 (inches)

Click on the links to view/download additional Resources.

Specification Sheet

Data Sheet
