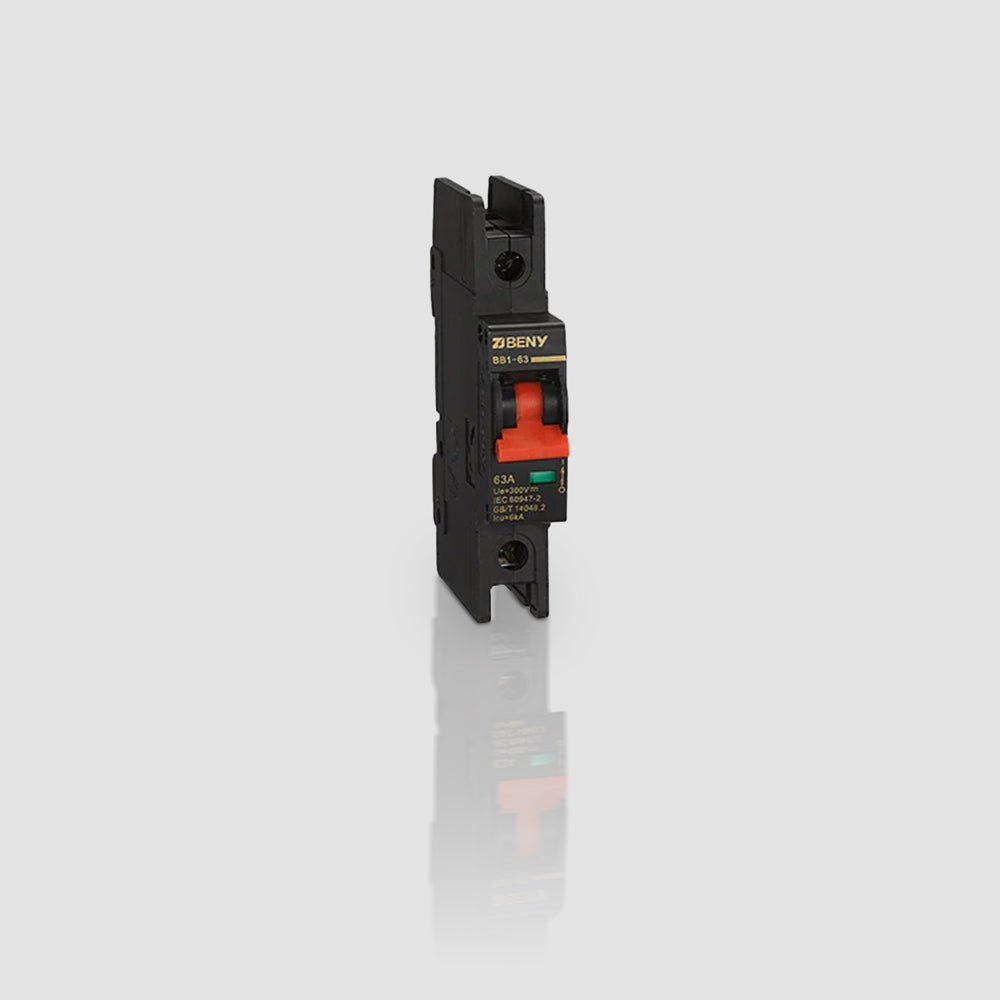

BENY DC Mini Circuit Breaker - 1 Pole

BENY DC Mini Circuit Breaker - 1 Pole

SOLAR DC MINI CIRCUIT BREAKER

The BB1-63 modular miniature circuit-breakers can be used in solar DC circuits up to 1200 VDC (4-poles execution). Application in solar DC circuits, battery energy storage systems and UPS.

Arc flash barrier design keeps solar equipment more safe and reliable.

For DC circuit over-current protection.



1 Pole, 300V

$24.66
$24.66
Sale Sold out
Amperage

Features

  • Non-polarity DC breaker
  • Up to 1200V 63A
  • IEC-60947.2
  • Breaking Capacity: 6kA
  • Arc flash barriers keep the systems safety
  • IP65 PC enclosure is optional

Specifications

Model BB1-63

Poles 1P

Standard IEC60947.2

Utilization Category DC-21B

Rated Operational Voltage (Ue) 300V

Rated Current 16A 32A 40A 50A

Mechanical Cycle 20000

Electrical Cycle 1000

Protection Degree All Sides IP40, Connection Terminal IP20

Polarity No Polarity

Certificate TUV

Product Support

Click on the links to view/download additional Resources.

Data Sheet
