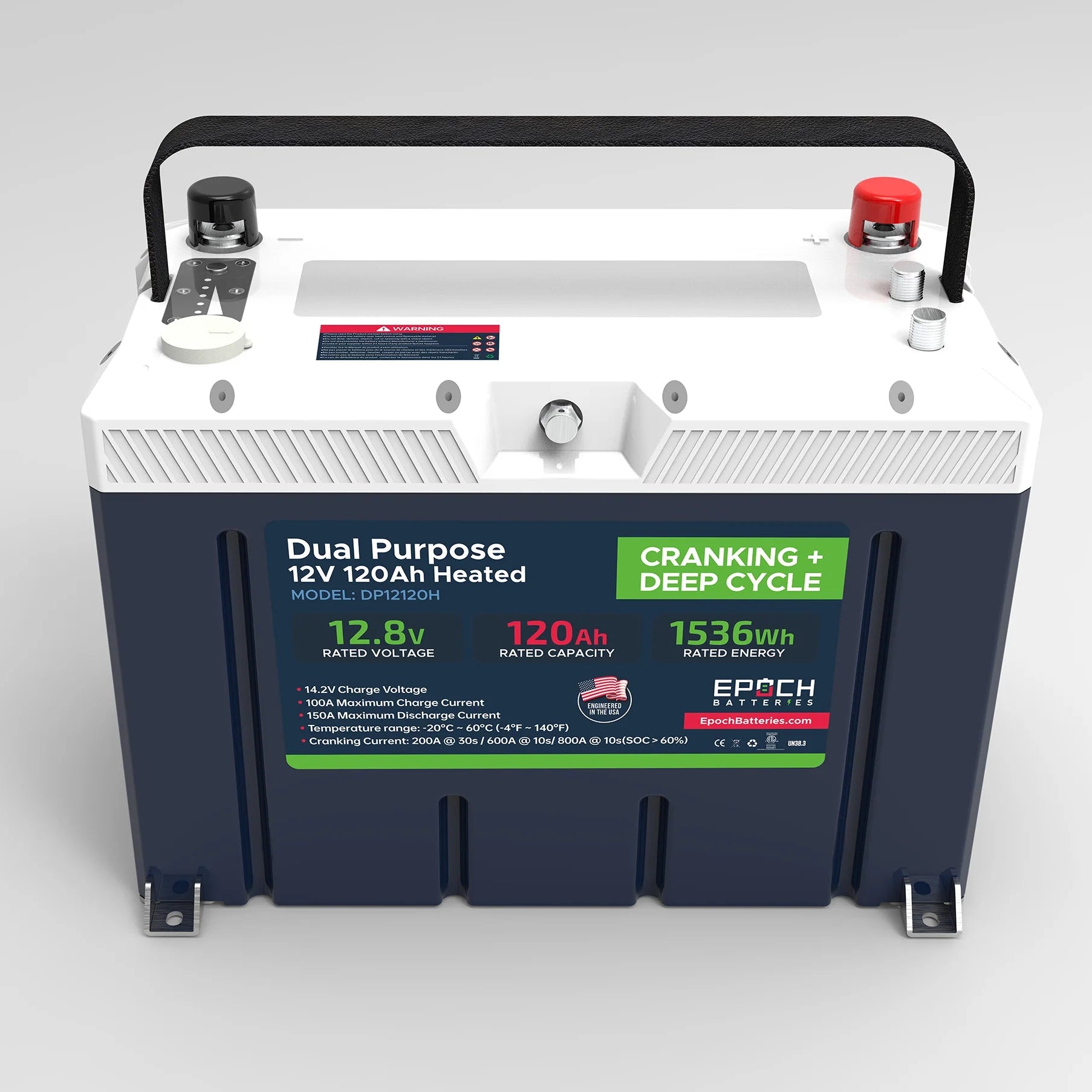

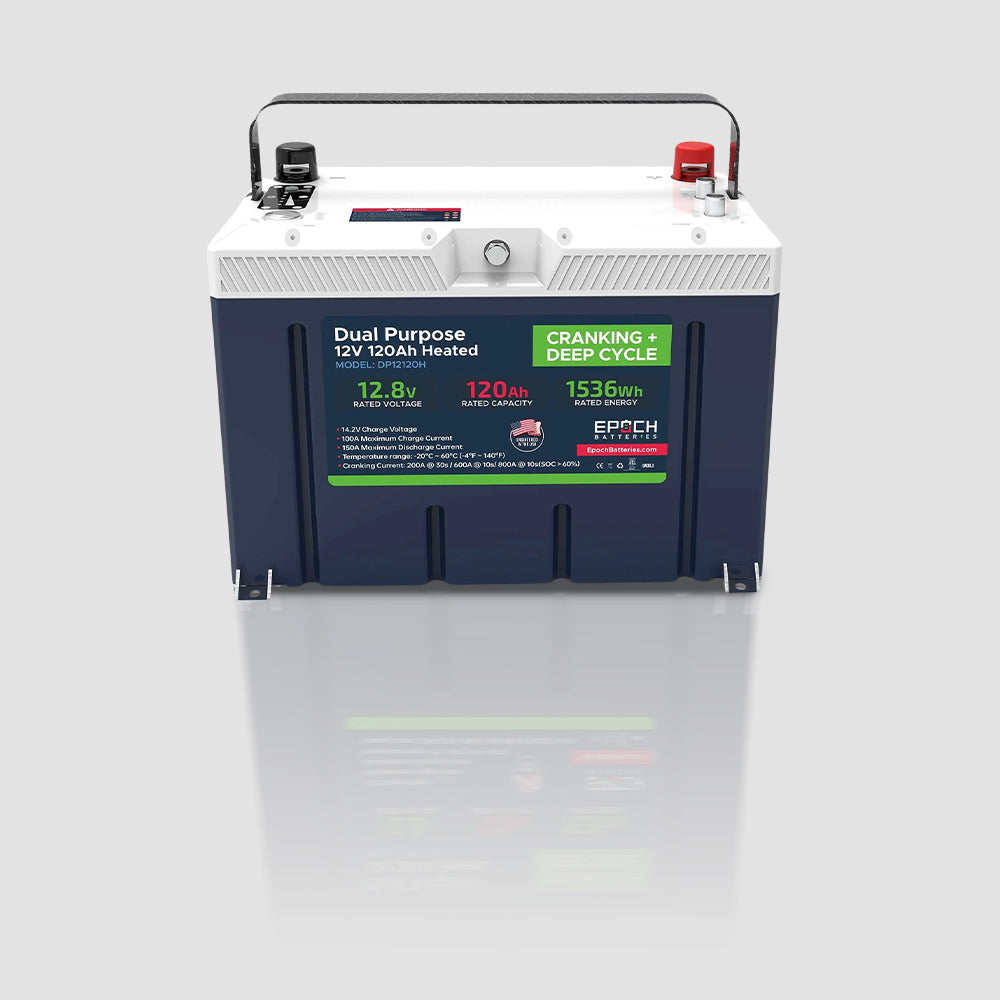

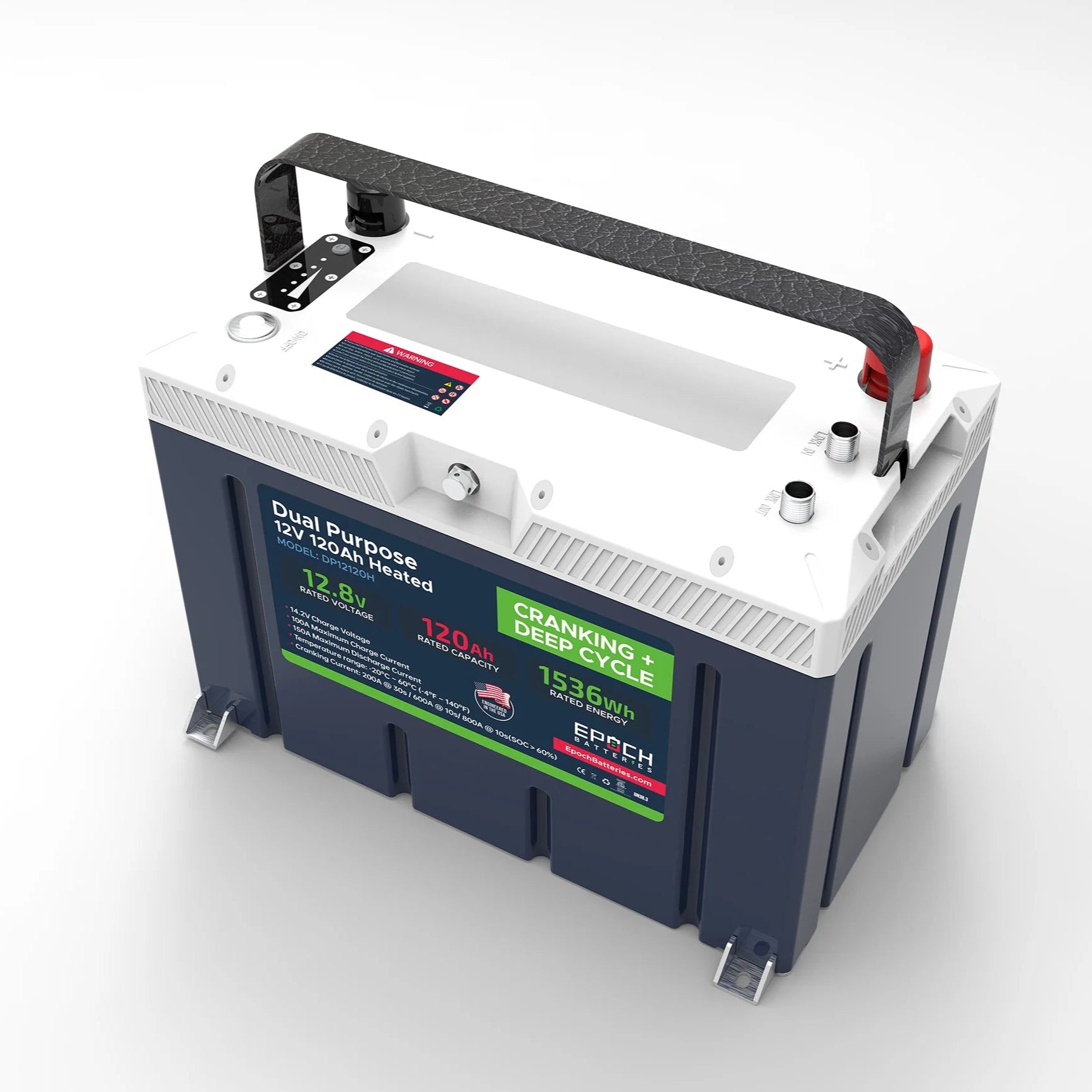

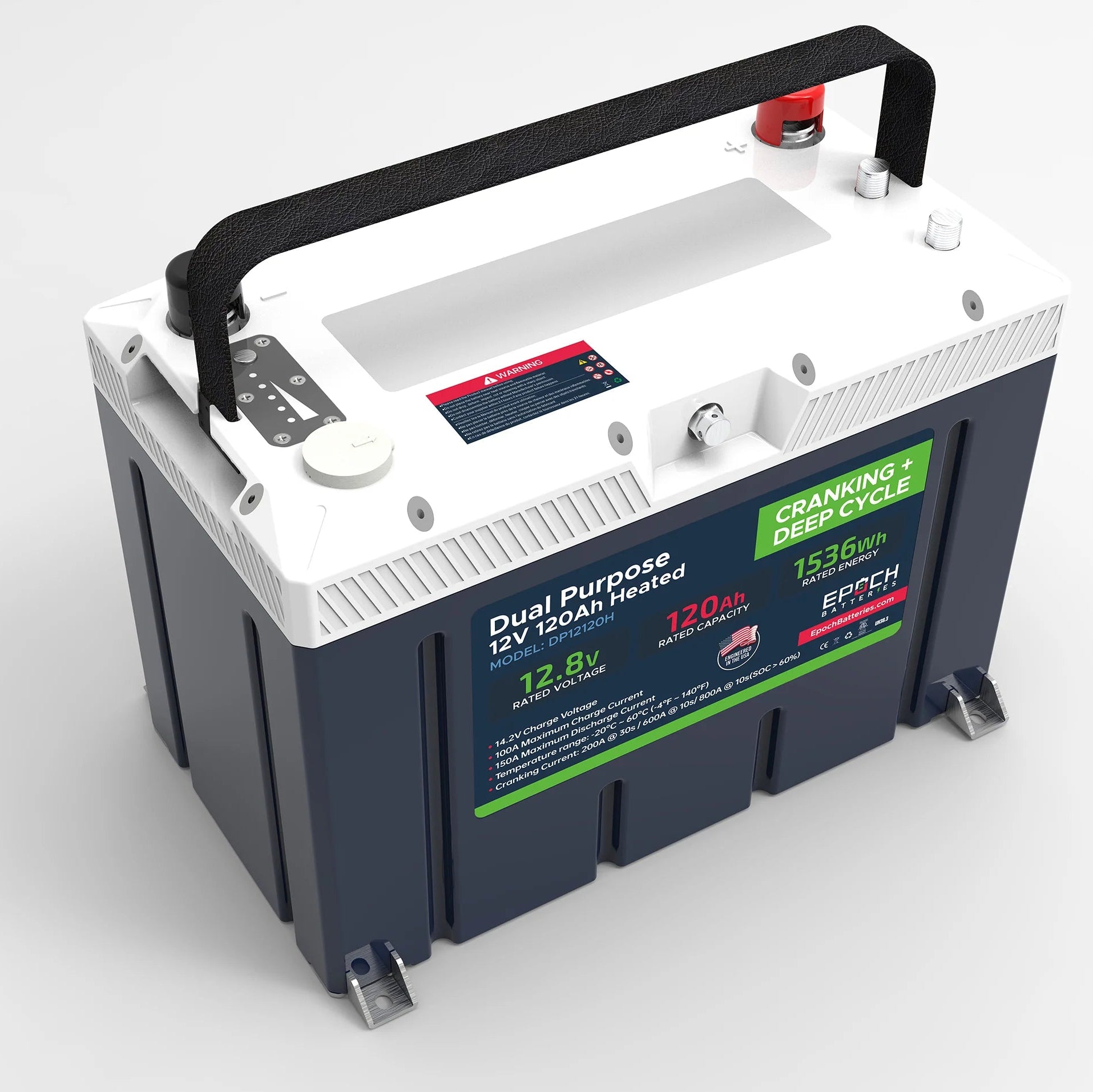

Epoch 12V 120Ah | Lithium Battery

• LiFePO4 Chemistry
• Cranking Starter Battery ~ 1100 CCA ~ Compatible with all outboard motors up to 350hp
• Cranking Battery - 800A @ 10s (SOC>60%), 800A @ 5s (SOC<60%), 600A @ 10s
• Adjustable High Voltage Cutoff via Epoch Pro App - 14.6V to 15.4V
• Peak charge acceptance 165A max for one minute
• Deep Cycle Battery -150A Max Continuous Discharge
• HEATED - Internal heating allows for charging in sub-zero conditions
• BLUETOOTH - iOS and Android Apps
• BLUETOOTH - Over the air Firmware update via the app
• Victron Comms - CANBus entire string of batteries to Victron Cerbo GX
• Closed Loop Communications
• External Battery Gauge - Touch Screen (Optional)
• IP67 Rated, Dust and WATERPROOF
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• Max (4) in Series up to 48V
• Max (16) in Parallel
• 6000+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Weight: 29.7 lbs

DIMENSIONS

Length: 12.1 (inches)

Width: 8.3 (inches)

Height: 6.6 (inches)

CONFIGURATION

Cell Configuration: 4S4P

Chemistry: LiFePO4

CURRENT

Ah Capacity: 120Ah

Max Continuous Discharge Amps: 150A

Max Charge Current Amps: 100A

Max Discharge Peak Current Amps: 800A @ 10s

Series | Parallel: Max (4) in Series, Max (16) in Parallel

VOLTAGE

Voltage: 12.8V

Max Charge Voltage: 15.4V

Operating Voltage Range: 10.0 - 15.4V

TEMPERATURE

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

Click on the links to view/download additional Resources.

User Manual

Data Sheet
